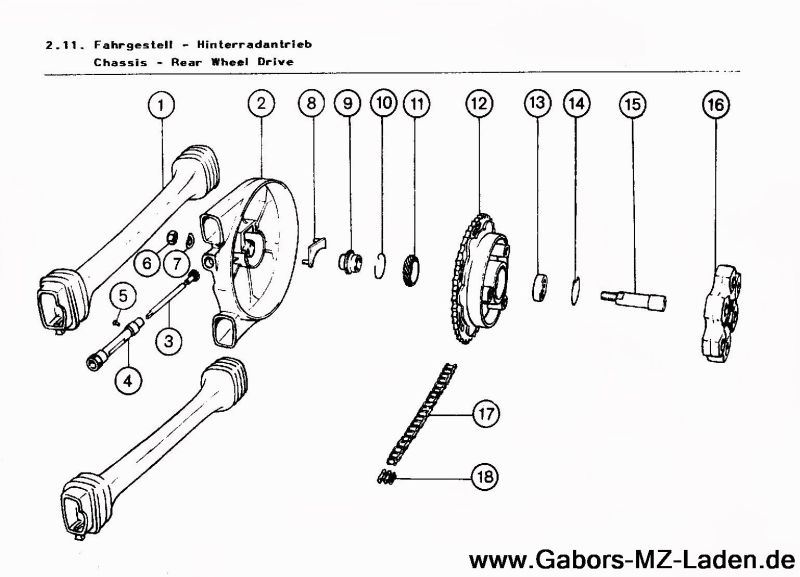

Chain guard rubber - ETZ 250/251/301 - mixture between PVC and synthetic rubber

We decided to manufacture chain guard rubbers after occasional quality problems with conventional chain guard rubbers. Those rubbers consist of a mix of synthetic rubber and PVC. These chain guard rubbers survive the longest than PVC rubbers. A balanced compromise has been found with the mixture of rubber and PVC for price and durability.
PRICE IS FOR ONE PAIR (2pcs)
Length in unloaded state approx. 42cm
ATTENTION:Please don´t use chain spray for lubricating, the spray will destroy the rubber ! Use grease for lubricating as recommended from the MZ factory.
CatalogueNo.: 1

Set - Chain guard rubber - ETZ 250/251/301 - synthetic rubber

We decided to manufacture chain guard rubbers after occasional quality problems with conventional chain guard rubbers. Those rubbers consist of synthetic rubber and not PVC, like those otherwise exposed to the market. These chain guard rubbers survive the longest than PVC rubbers. Unfotunately the material is more expensive than PVC.
PRICE IS FOR ONE PAIR (2pcs)
Length in unloaded state approx. 42cm
ATTENTION:Please don´t use chain spray for lubricating, the spray will destroy the rubber ! Use grease for lubricating as recommended from the MZ factory.
CatalogueNo.: 1

Chain cover

MZ 500 ETZ 125,150,250,251/301
CatalogueNo.: 2

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Chain cover

MZ 500 ETZ 125,150,250,251/301
CatalogueNo.: 2

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Speedometer gear complete 12 teeth

in combination with 32-25.051 only
CatalogueNo.: 3

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Speedometer gear complete 12 teeth

in combination with 32-25.051 only
CatalogueNo.: 3

Speedometer drive bush

MZ 500 ETZ 125,150,250,251/301 TS 250,250/1
CatalogueNo.: 4

Countersunk screw M6x8 TGL 5683-4.8

MZ 500 all
CatalogueNo.: 5

Hexagon nut M14x1,5 TGL 0-934-6

CatalogueNo.: 6

Curved disc spring B14 TGL 0-137

CatalogueNo.: 7

Sealing plate for chain covering

MZ 500 ETZ/TS/ES 125,150,250,251/301 TS 250,250/1 ES/ETS 125/1, 150/1
CatalogueNo.: 8

Distance sleeve

CatalogueNo.: 9

Retaining ring in chaincover

MZ 500 all RT 125/ 1; ../ 2 : from chassis number: 5002389
ETZ/TS/ES 125,150,250,250/1 ETZ 251/301 ES/ETS 125/1, 150/1
CatalogueNo.: 10

Helical gear for speedometer drive 21 teeth

ETZ125, ETZ150, ETZ251, ETZ301
only in combination with 32-25.049
CatalogueNo.: 11

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Helical gear for speedometer drive 30 teeth

ETZ 125,150,251/301 MZ 500 R, NR, VR new version ETZ 125,150,251/301
CatalogueNo.: 11

Chain sprocket with damper unit 48 teeth - carrier with sprocket

1x 6204 and 1x 6005 bearings
ETZ 250,251/301
CatalogueNo.: 12

Chain sprocket with damper unit 48 teeth - carrier with sprocket

1x 6204 and 1x 6005
ETZ 250,251/301
CatalogueNo.: 12

Rear sprocket Grimeca for cast wheel 48Z

ETZ 251, 301
CatalogueNo.: 12

Ring gear (cast wheel) 42 teeth - 4T, not drilled

CatalogueNo.: 12

Sprocket gear 48 teeth - for regeneration of wheel driver with sprocket

MZ ES, ETS, TS, ETZ
CatalogueNo.: 12

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Ball bearing 6004 2Z

SKF
CatalogueNo.: 13

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen, Deutschland gpsr@mza.de

Circlip 42 TGL 0-472 (without bail for example for 6004 in catch)

CatalogueNo.: 14

Circlip 42x1,75 TGL 0-472

MZ 500 all
CatalogueNo.: 14

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Flange bolt

ETZ 251/301 MZ 500
CatalogueNo.: 15

Flange bolt for 2x 6004 bearings

ETZ 251/301 MZ 500
CatalogueNo.: 15

Damping rubber

TS 250 ETZ 250
CatalogueNo.: 16

Manufacturer: MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen gpsr@mza.de https://www.mza-vertrieb.de/

Damping rubber

TS 250 ETZ 250
CatalogueNo.: 16

Damping rubber

Material is natural rubber, so no PVC like the other available reproductions.
Rubber is more elastic and more durable than PVC. TS 250 ETZ 250
CatalogueNo.: 16

Damping rubber Grimaca for casting wheel

The material is natural rubber. This material is very elastic and therefore ideal for this application.
CatalogueNo.: 16

Favorit roller chain 1/2x5/16x128 (128 links)

Original quality
CatalogueNo.: 17

Meteor roller chain 0,8 B-1-128 TGL 11796 (128 rollesr)

Original quality
CatalogueNo.: 17

Manufacturer: Meteor Kettenfabrik GmbH, Nürnberger Straße 2, 36456 Barchfeld info@meteor-ketten.com

Roller chain 0,8 B -1-126 DIN 8187 TS 250,250/1 ETZ 251/301

CatalogueNo.: 17

Manufacturer: Meteor Kettenfabrik GmbH, Nürnberger Straße 2, 36456 Barchfeld info@meteor-ketten.com

Roller chain 0,8 B-1-128 TGL 11796 (128 links)

VEB Kettenfabrik Barchfeld (Publicly Owned Operation chain factory Barchfeld)
CatalogueNo.: 17

Connecting link 1/2x5/16 12,7x7,75 assembled

ETZ 125,150,250,251/301 TS 250,250/1
CatalogueNo.: 18

Manufacturer: Meteor Kettenfabrik GmbH, Nürnberger Straße 2, 36456 Barchfeld info@meteor-ketten.com

Connecting link 1/2x5/16 assembled

BÜCHEL brand
CatalogueNo.: 18

Manufacturer: Fahrzeugteile Vertrieb Thüringen GmbH, Im Vorwerk 26, 36456 Barchfeld-Immelborn mroeder@tfv-barchfeld.de
