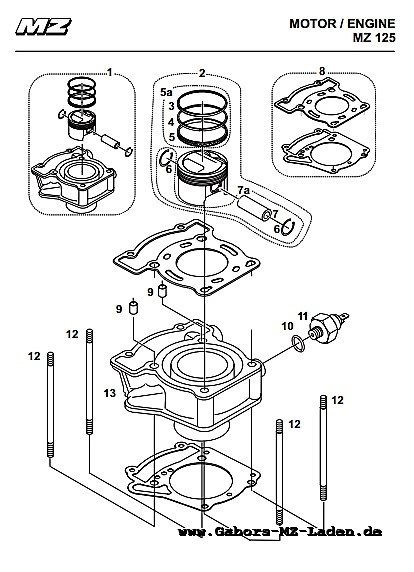

Cylinder dark grey (B) - only in exchange

CatalogueNo.: 1

Cylinder dark grey (C) - only in exchange

CatalogueNo.: 1

Cylinder silver (A) - only in exchange

CatalogueNo.: 1

Cylinder silver (B) - only in exchange 1x with piston Y

CatalogueNo.: 1

Cylinder silver (C) - only in exchange

CatalogueNo.: 1

Cylinder with piston (bright grey) - only with exchange cylinder

CatalogueNo.: 1

Piston complete (degree Y)

CatalogueNo.: 2

Piston complete (degree Z)

replaced by 901534300Z (Art.Nr.: 374200600Z)
CatalogueNo.: 2

Rectangular ring 1

CatalogueNo.: 3

Manufacturer: MuZ - Motorrad-und Zweiradwerk GmbH, 09401 Zschopau

Taper face ring 2 (napier ring)

CatalogueNo.: 4

Manufacturer: MuZ - Motorrad-und Zweiradwerk GmbH, 09401 Zschopau

Oil control ring (chamfer ring)

CatalogueNo.: 5

Piston ring set

CatalogueNo.: 5a

Retaining ring 15x1,2mm DIN 73130-C-15

for piston A, B, C
CatalogueNo.: 6

Retaining ring ∅ 1,20mm DIN 73130-C-15 (BS 15/8)

for piston X, Y, Z
CatalogueNo.: 6

Manufacturer: MuZ - Motorrad-und Zweiradwerk GmbH, 09401 Zschopau

Gudgeon pin DIN 7326-15x9x42

CatalogueNo.: 7

Manufacturer: MuZ - Motorrad-und Zweiradwerk GmbH, 09401 Zschopau

Set cylinder gaskets

CatalogueNo.: 8

Manufacturer: MuZ - Motorrad-und Zweiradwerk GmbH, 09401 Zschopau

Fitting sleeve for cylinder 10x8,4x14

CatalogueNo.: 9

Sealing ring 10x16x1 DIN 7603-Cu

CatalogueNo.: 10

Tension rod, stud bolt

CatalogueNo.: 12
